Timber Engineering

19.014

Monteco

Brussels,

Belgium

0 sqm
Project data

Monteco

19.014

Brussels,

Belgium

0 sqm

Context

Located in the heart of the European quarter, the Montoyer project is an 8-storey office building with 3 basement levels, making it the first high-rise wooden building in the Brussels region.. Located on a small corner plot, the new building replaces an obsolete building. The top two floors are set back to provide space for a large terrace on the seventh floor.

Particularities

In the basement, the walls of the old building on the parcel were kept. In order to ensure the temporary maintenance of these walls, they were nailed in place so as not to clutter up the pit with struts to facilitate the phasing of the site.
The structure, in order to meet a very tight schedule, is mainly prefabricated. Thus, in the basement, only the foundation slab and the walls of the -3 are made of cast-in-place concrete.

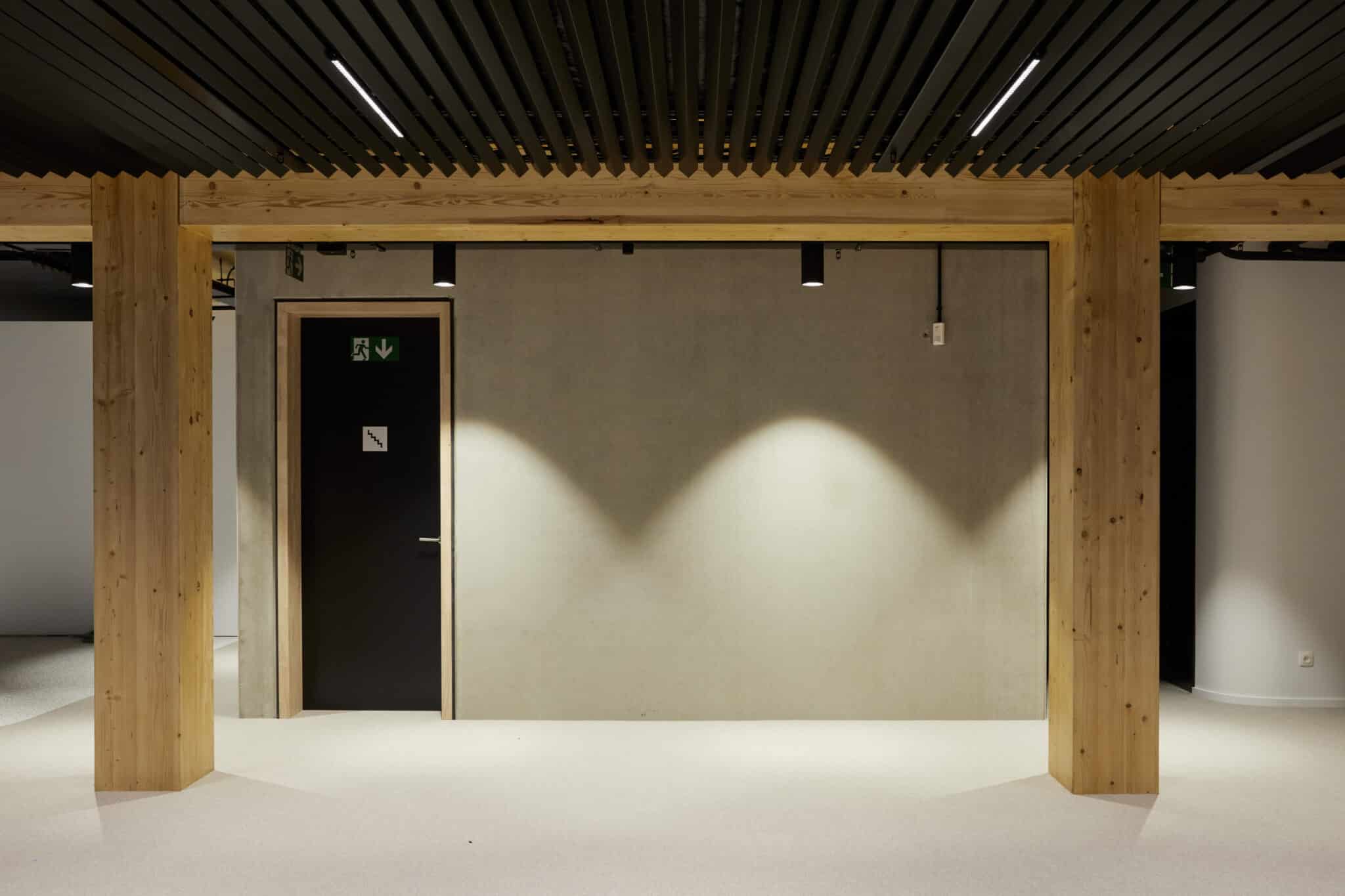

The rest of the concrete elements are entirely or partially precast. The car park and ground floor slabs are hollow core concrete slabs laid on prefabricated concrete beams. The ramp is a pre-slab, while all the walls are made of prefabricated concrete twin-walls. At the superstructure level, there is a main concrete core and a secondary core in CLT. The common walls and facade walls are also made of CLT. The rest of the structure is a glulam column and beam structure. The floors with a span of up to 6.3 m are made of CLT 220-7ss in particular to guarantee the R120 criterion.

Location
rue Montoyer 14 1000 Bruxelles
Study
2019
– 2021
Execution
2021
– 2022
Architect
Archi 2000
Client
Nextensa
Contractor
BPC GroupWoodshaper
© Copyrights
Laetizia Bazzoni
Certification
BREEAM

Modelisation

Construction site
